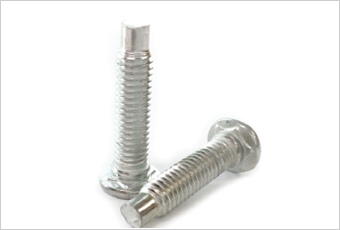

프레스 타입 볼트

Press Type Bolts

스터드, 스터드 볼트, 클린칭 볼트 라고도 불리는 프레스 볼트는 압입방식으로 모재에 체결됩니다.

프레스 볼트의 플렌지 부분이 모재에 압입되어 회전에 대한 높은 저항력을 가지며 용접과 달리 후처리가 필요 없어 편리합니다.

알루미늄, 스틸 모재에 압입이 가능하며 압입한 프레스 스터드의 플랜지측은 평평하게 마무리 됩니다.

기존의 공압식, 유압식 프레스 등으로 압입이 가능합니다.

Press Type Bolts

A press bolt also known as studs, stud bolts and clinching bolts is fastened to the base material in press-in method.

The flange of a press bolt is pressed into the base material to have high resistance to rotation, and unlike welding, it doesn’t require post-processing, so it is convenient.

It can be pressed into the base material in aluminum and steel, and the press-fit flange side of a press stud will be finished flatly.

Indentation by existing pneumatic and hydraulic presses will be possible.

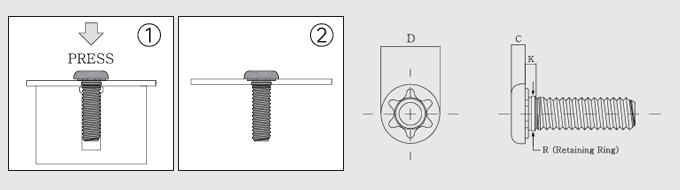

프레스 타입 볼트 체결과정 (Fastening Process of Piece Type Bolts)
